ODIN Bridge Plug

High-Expansion HPHT Retrievable Bridge Plug

Description

ODIN™ is the only High-Expansion, High-Pressure / High-Temperature (HPHT) Retrievable Bridge Plug (RBP) with sealing enabled by Northstar’s patented Stellar™ element backup technology, making it the most capable and operationally flexible RBP available. One tool model can service a broad range of casing sizes and weights without changing any parts.

Stellar™ is an industry-first Packer/RBP element support system that expands to make virtually uninterrupted metal-to-metal contact with the full circumference of the casing; combining unprecedented high-pressure sealing with large expansion.

The ODIN™ can pass through wellbore restrictions like Subsurface Safety Valves (SCSSVs), damaged casing, nipple profiles and casing patches, and seal 15,000 psi differential pressure in both directions.

The ODIN™ RBP requires only one run of slick line, e-line, coiled tubing, or tubing to set. For safety, the retrieval requires two straight pull motions with minimal force on a standard GS profile. The first pull equalizes the differential pressure through a large bypass. Pulling a second time unsets the slips and sealing element. The element is pulled back to its original form (active element extension), ensuring the ODIN™ returns to its original OD.

Features

  • IconPatented Stellar™ support technology provides virtually uninterrupted metal-to-metal element support
  • IconOne model can be run in a large range of casing sizes with no conversion parts required
  • IconHigh-expansion: Maximizes clearance through restrictions
  • Icon15,000 psi differential pressure rated and 350°F temperature rated and trip speeds
  • IconStaged Setting & Releasing: Ensures each component (slips, backups and elements) fully set and retract in the optimal sequence
  • IconActive Element Extension: The High-Expansion Element is physically pulled back to its original OD when released, ensuring maximum clearance when recovering the RBP
  • IconBidirectional wicker slips maximize contact area, minimizing casing stress and damage
  • IconHighly debris-tolerant due to innovative equalizing/ retrieval design
  • IconSingle-trip retrieval with a safe, two-stage release by pulling on an internal GS profile or external fishing neck with minimal tension
  • IconRotation-locked components allow for partial or complete plug millout

Applications

  • IconMonobore Well Barrier during well maintenance, work-overs, and temporary abandonment
  • IconWellhead repair and replacement
  • IconZonal isolation, water shut off or treatment
  • IconPre-installation in completion tail-pipe for packer setting
  • IconContingency packer setting
  • IconTesting of production tubing
  • IconPlugging of completions with damaged nipple profiles
  • IconHanging of completion accessories within tubing string
  • IconTemporary well suspension
  • IconThru-Tubing completion

Competitor Comparable Tools

Competitor Tool / Tool Name Model
Interwell HPHT Retrievable Bridge Plug
Interwell Medium Expansion Retrievable Bridge Plug (ME)
Schlumberger SIMultra Retrievable Bridge Plug
Halliburton Intercept Retrievable Bridge Plug
Weatherford ISO Extreme Retrievable Well Barrier
Weatherford ISO Intelligent Retrievable Well Barrier
Halliburton EVO-trieve Bridge Plug

ODIN™ Medium Expansion HPHT Retrievable Bridge Plug

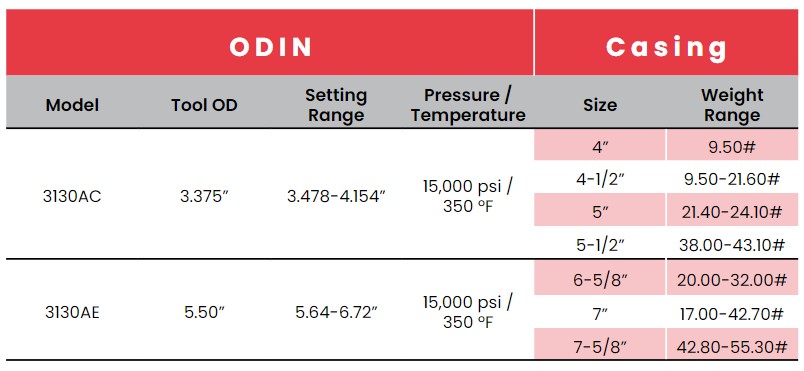

Specifications

ODIN
Casing
Model
Tool OD
Setting Range
Pressure / Temperature
Size
Weight Range
3130AC
3.375”
3.478-4.154”
15,000 psi / 350 ºF
4”
9.50#
4-1/2”
9.50-21.60#
5”
21.40-24.10#
5-1/2”
38.00-43.10#
